Post-Operative Hinged ROM Knee Brace Biomechanical Simulator: Joint Torque, Ligament Strain, and Telescopic Aviation-Grade Orthotic Engineering
Post-Operative Hinged ROM Knee Brace Biomechanical Simulator
Precision clinical biomechanics suite calculating joint moment equilibrium, patellofemoral reaction forces, aviation aluminum strut yield margins, and soft-tissue interface pressure across therapeutic flexion and extension regimes.
Clinical Scenario Protocols
Dynamic Kinematic Visualizer & Structural Stress Map
Engineering Biomechanics & Structural Stress Metrics
Pejabat Kesihatan Daerah (KKM) Post-Operative Knee Rehabilitation Protocols
Post-operative management following anterior cruciate ligament (ACL) reconstruction, posterior cruciate ligament (PCL) repair, meniscal root repair, and total knee arthroplasty (TKA) requires precise mechanical control over tibiofemoral kinematics. The primary goal of a hinged range-of-motion (ROM) knee brace is to eliminate excessive sagittal shear forces and unconstrained varus-valgus rotational torques during the acute proliferative and remodeling phases of soft tissue repair.
Biomechanics of Controlled Range of Motion
The tibiofemoral joint exhibits instantaneous helical centers of rotation that shift posteriorly during flexion (the femoral rollback phenomenon). A rigid single-axis brace hinge must be correctly positioned concentric to the lateral femoral epicondyle (approximately 1.5 cm proximal to the joint line). Misalignment introduces secondary shear stresses across both the healing graft and the brace frame.
Joint moment equilibrium is governed by the gravitational torque of the lower leg segment combined with active muscular contraction:
M_knee = (M_shank * g * d_shank_cg * sin(ΞΈ)) + (M_foot * g * d_foot_cg * sin(ΞΈ)) + F_quad * r_patella
Where M_shank represents shank mass (approximately 4.33% of total body mass), M_foot represents foot mass (approximately 1.37% of total body mass), ΞΈ is the sagittal knee flexion angle, and g is gravitational acceleration (9.81 m/s²).
Patellofemoral Joint Reaction Force (PFJRF) and Graft Strain
As knee flexion progresses past 30°, quadriceps tendon and patellar tendon tension vectors converge, escalating patellofemoral contact forces. The patellofemoral joint reaction force (PFJRF) is calculated as:
PFJRF = 2 * F_quad * sin(ΞΈ / 2)
During early phase ACL rehabilitation (Weeks 0 to 4), terminal extension between 0° and 20° under active open kinetic chain loading produces maximum anterior tibial translation, creating excessive strain (> 4%) on newly fixated hamstring or bone-patellar tendon-bone autografts. Restricting terminal extension via the dial lock pin prevents graft elongation and graft-tunnel micro-motion.
Materials Engineering: Aviation Grade 6061-T6 Aluminum Struts
The dual bilateral uprights of the orthosis are fabricated from aviation-grade 6061-T6 aluminum alloy, characterized by a yield strength (Ο_yield) of 276 MPa and an elastic modulus (E) of 68.9 GPa. Under peak varus-valgus impact loading (M_load = 45 Nm), bending stress is governed by the flexure formula:
Ο = (M_load * y) / I_xx
Where I_xx is the area moment of inertia of the dual rectangular strut profiles, and y is the distance to the extreme outer fiber. A minimum safety factor (SF = Ο_yield / Ο_applied) of 2.50 is mandatory under clinical engineering guidelines to prevent permanent mechanical deformation during accidental patient stumbling.
Soft-Tissue Interface Pressure and Capillary Perfusion Safety
According to Laplace's Law of cylinder compression, the contact pressure (P) exerted by the high-adhesive 70 cm hook-and-loop strapping system on the thigh and calf soft-tissue envelopes is modeled by:
P = T / (R * W)
Where T is strap tensile force, R is leg segment radius, and W is strap width (5.0 cm). Clinical guidelines state that interface pressure must remain strictly below arteriolar and capillary closing pressure (32 mmHg / 4.27 kPa) to prevent pressure necrosis, venous stasis, deep vein thrombosis (DVT), and common peroneal nerve compression neuropathy at the fibular head.
| Rehabilitation Phase | Recommended ROM Dial Settings | Strap Pressure Limit | Clinical Objective |
|---|---|---|---|
| Phase 1 (Weeks 0 - 2) | Extension: 0° | Flexion: 30° to 45° (or Locked at 0°) | < 25 mmHg | Graft protection, joint effusion control, wound healing |
| Phase 2 (Weeks 2 - 6) | Extension: 0° | Flexion: 60° to 90° | < 28 mmHg | Gradual collagen realignment, patellofemoral gliding |
| Phase 3 (Weeks 6 - 12) | Extension: -10° to 0° | Flexion: 110° to 120° | < 30 mmHg | Full functional range restoration, progressive proprioception |

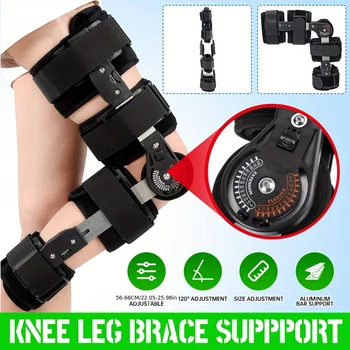

Certified Orthopaedic Grade Hinged Knee Brace
Engineered aviation aluminum dual-hinge structure with pull-and-set angle pin cartridge for clinical and home rehabilitation.
